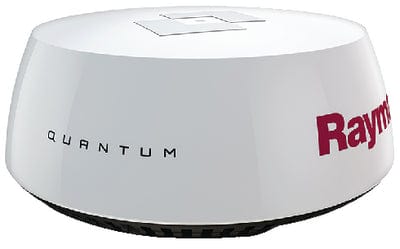

Raymarine T70243 Quantum™ Wireless CHIRP Radome w/Wi-Fi & Data w/Power & Data Cable

RAYMARINE

QUANTUM WIRED-WIRELESS RADOME

Sale price$2,632.49
SKU: LNS-152-T70243

Contact Us - Toll Free: 1-833-762-0001
Email: Orders Team

Pickup available at 821 McCurdy Pl Usually ready in 2-4 days

QUANTUM WIRED-WIRELESS RADOME

821 McCurdy Pl

Pickup available, usually ready in 2-4 days

821 McCurdy Pl
Kelowna BC V1X 8C8
Canada

2507620001
Quantum Radar is the world's first compact marine radar to use CHIRP pulse compression technology. Setting a new standard for solid state marine radar, Quantum delivers superior radar imaging on both long and extremely short ranges. Integrated Wi-Fi makes installation easy and Quantum's energy effcient and lightweight design provides safe radiated emissions and reduced power consumption. 21.30"W x 8.25"H. Model Q24C Description 18" Wi-Fi & Data w/10m Power & Data Cable
  • Input Voltage: 12 or 24 Vdc

  • Networking: Wi-Fi or wired Ethernet (RayNet)

  • Power Consumption: Transmit mode 17W; standby mode 7W; sleep mode 2W

  • 1/16 to 24 nautical miles max range

  • 20W Peak Power Output

  • Pulse Widths (3 dB): 40 ns to 14.7 ?s

  • CHIRP Lengths: 400 ns to 20 ?s

  • CHIRP Bandwidth: Up to 32 MHz

  • Beamwidth (nominal): 4.9° horizontal and 20° vertical


SOME SHIPPING RESTRICTIONS AND ADDITIONAL CHARGES MAY APPLY ON THIS ITEM. IF APPLICABLE OUR TEAM WILL CONTACT FOLLOWING PURCHASE



Haz Code 9
