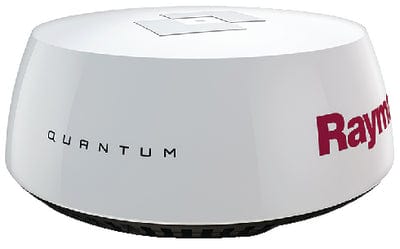

Quantum Radar is the world's first compact marine radar to use CHIRP pulse compression technology. Setting a new standard for solid state marine radar, Quantum delivers superior radar imaging on both long and extremely short ranges. Integrated Wi-Fi makes installation easy and Quantum's energy effcient and lightweight design provides safe radiated emissions and reduced power consumption. 21.30"W x 8.25"H. Model Q24C Description 18" Wi-Fi & Data w/10m Power Cable

• Input Voltage: 12 or 24 Vdc


• Networking: Wi-Fi or wired Ethernet (RayNet)


• Power Consumption: Transmit mode 17W; standby mode 7W; sleep mode 2W


• 1/16 to 24 nautical miles max range


• 20W Peak Power Output


• Pulse Widths (3 dB): 40 ns to 14.7 ?s


• CHIRP Lengths: 400 ns to 20 ?s


• CHIRP Bandwidth: Up to 32 MHz


• Beamwidth (nominal): 4.9° horizontal and 20° vertical
