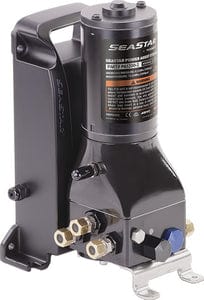

SeaStar Power Assist unit can be installed on new SeaStar steering installations or as an easy restro-fit to existing systems. Suitable for most boat types, the SeaStar Power Assist uses an electronically controlled hydraulic pump to provide on-demand power steering. It is installed into the hydraulic steering circuit between the helm and steering cylinder. The Power Assist unit is powered from the boat's battery and adjusts automatically to the input voltage (12V or 24V). Dramatically reducses steering effort. Wall or Floor Mount. Compatible with power purge system. Return to manual in failure mode. Suitable for use with autopilots. Wiring harness included. Ignition protected (SAE J-1171). ABYC, CE, NMMA, ISO 10592 Approved. Description Power Assist, 15' Harness

• 12/24 Volts (automatically recognized)


• 1000psi MAX system peak pressure (500psi working load)


• Relief pressure 2000 psi


• MAX current draw = 50 amps


• Typical current draw = ~3 amps


• Purple ignition wire MAX current draw = 1 amp
