Dual Station Selector Unit

SEASTAR SOLUTIONS

DUAL STATION SELECTOR UNIT

Sale price$331.79
SKU: LNS-1-204993

Due to on-going supply-chain issues
product availibility and shipping times may vary

Contact Us - Toll Free: 1-833-762-0001
Email: Orders Team

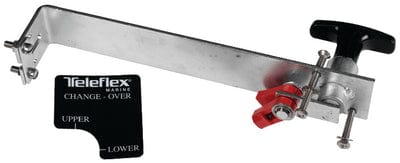

The Dual Station (DS) unit is designed for inboard, sterndrive, or outboard boaters that like using one lever to do both throttle and shift in their dual station boat. The Station Selector allows smooth operation of dual function controls in a dual station application. Great for dual station boats without a lot of dash space or for use with side mounted controls in two stations. Just put both levers in neutral, turn the selector switch, and you have changed stations. Seastar Solutions recommends to only use CCX633xx cables. Engine adapter kits for the control cables are needed unless provided by the manufacturer. Control boxes not included.
Note: The Inboard/Sterndrive throttle unit is a pull to advance set up, for a push to advance set up use the Outboard throttle unit. Description Selector Unit
  • Dual function mechanical controls can be used in a dual station boat

  • Side mount controls can now be used in dual station boats

  • You only require one station selector for both a single engine or dual station boats

  • Using the recommended XTREME control cables allow smooth control operation

  • The Inboard/Sterndrive DS throttle unit is a pull only set up. For a push throttle use the outboard DS throttle unit


Single Engine Dual Station Requirements:
  • 1 DS Gear Unit (207573)

  • 1 DS Throttle Unit (177030 for I/B, 207572 for O/B)

  • 1 Station Selector Unit (204993)

  • 1 Cable from Selector to DS Gear Unit (CCX633xx)

  • 1 Cable from Station 1 to DS Gear Unit (CCX633xx)

  • 1 Cable from Station 2 to DS Gear Unit (CCX633xx)

  • 1 Cable from DS Gear Unit to transmission (CCX633xx)

  • 1 Cable from Station 1 to DS Throttle Unit (CCX633xx)

  • 1 Cable from Station 2 to DS Throttle Unit (CCX633xx)

  • 1 Cable from DS Throttle Unit to Engine (CCX633xx)

  • 1 Engine Adapter Kit for Control Cables (unless provided by mfg)


Dual Engine Dual Stations Requirements:
  • 2 DS Gear Unit (207573)

  • 2 DS Throttle Unit (177030 for I/B, 207572 for O/B)

  • 1 Station Selector Unit (204993)

  • 2 Cables from Selector to DS Gear Unit (CCX633xx)

  • 1 Cable from Port Station 1 to DS Gear Unit (CCX633xx)

  • 1 Cable from Starboard Station 1 to DS Gear Unit (CCX633xx)

  • 1 Cable from Port Station 2 to DS Gear Unit (CCX633xx)

  • 1 Cable from Starboard Station 2 to DS Gear Unit (CCX633xx)

  • 2 Cables from DS Gear Units to transmissions (CCX633xx)

  • 1 Cable from Port Station 1 to DS Throttle Unit (CCX633xx)

  • 1 Cable from Starboard Station 1 to DS Throttle Unit (CCX633xx)

  • 1 Cable from Port Station 2 to DS Throttle Unit (CCX633xx)

  • 1 Cable from Starboard Station 2 to DS Throttle Unit (CCX633xx)

  • 2 Cables from DS Throttle Unit to Engine (CCX633xx)

  • 2 Engine Adapter Kits for Control Cables (unless provided by mfg)



Haz Code 9
