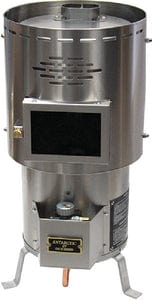

Ideal for boats 35'-40'. Produces greater heat output than smaller heaters w/same fuel consumption. Round design has a large viewing window. In sailboat installations, this unit must face fore or aft, if facing port or starboard is desired, the valve needs to mount to the side of the unit so the gravity fed valve won?t starve the burner on heels up to 15 degrees. Model P900 Description w/o Coil Size 13" W x 25" H x 14" D

• Requires 3" chimney parts


• Min 4' or max 8' chimney is required, a straight run works best


• Chimneys 6' or longer a barometric damper is recommended


• Permanent fresh air vent required


• Creates a dry heat to dry out vessel


• Larger combustion chamber so more heat is produced than Alaska or Newport heaters


• 12v draft assist fan included (can be converted to 24v and 32v) for start up and draft assistance


• Valve is calibrated for diesel, can be re-calibrated for kerosene or stove oil


• 1 turn hot water coil for 5-10 gal or a 2 turn hot water coil for 15-20 gal can be installed
