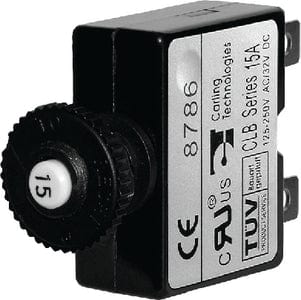

Provides economical circuit protection for 3 to 40 Amp loads when switching is provided separately. Compact design enables high density circuit protection configurations - waterproof with optional boot. Trip free - cannot be held closed after trip. Amps 15 Type Quick Connect Terminals Interrupting Capacity: 3,000A @ 14.7V DC / 2,500A @ 28V DC
Voltage Max. Operating: 32V DC
Temperature Min. Operating: -10°C
Temperature Max. Operating: 60°C
Type: Thermal trip, manual reset
Terminals: #8 Screw Terminals or 1/4" Male Quick Connect Terminals
Screw Terminal Torque: 6 in-lb max.
