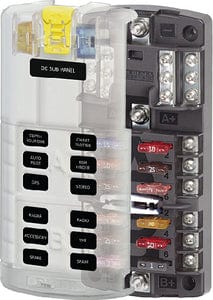

Two isolated 6-circuit fuse blocks with a negative bus. For use when a mix of switched and 24-hour circuits are desired in the same block. Description 12 circuits Stud Negative Bus: #8-32 stud
Positive Bus: #8-32 stud

• Common and/or independent source fuse block


• For use with either two isolated batteries or with a single battery


• Clear insulating cover satisfies ABYC/USCG requirements


• Easy to open, push button latch


• Tin-plated copper buses and fuse clips


• Includes 20 write-on circuit labels


• Fuses sold separately

Specifications

• Voltage Max.: 32V DC


• Amperage Max.: 30A per circuit 100A total


• Fuse Type: ATO^® or ATC^®


• Screw Terminal: #8-32 Screws
