BLUE SEA SYSTEMS
CIRCUIT BREAKER MD PUSH
Pickup available at 821 McCurdy Pl
Usually ready in 2-4 days
CIRCUIT BREAKER MD PUSH
821 McCurdy Pl
Pickup available, usually ready in 2-4 days
821 McCurdy Pl
Kelowna BC V1X 8C8
Canada

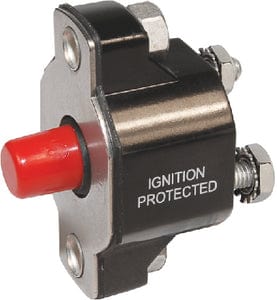

Provides circuit protection for 15 to 60 Amp loads when switching is provided elsewhere or not required. Weatherproof, compact design can be used as Main, Branch or 24-hour circuit protection. "Trip Free" design cannot be held ON during fault current condition. Amps 40 Interrupting Capacity: 5,000A @ 32V DC - 3,000A @ 120V AC
Voltage Max. Operating: 32V DC / 120V AC
Temperature Min. Operating: -54°C
Temperature Max. Operating: 74°C
Type: Thermal trip, manual reset
Terminal Stud: #10-32 Stainless Steel
Terminal Stud Torque: 30 in-lb max.
Mounting Thread: #8 -32
Voltage Max. Operating: 32V DC / 120V AC
Temperature Min. Operating: -54°C
Temperature Max. Operating: 74°C
Type: Thermal trip, manual reset
Terminal Stud: #10-32 Stainless Steel
Terminal Stud Torque: 30 in-lb max.
Mounting Thread: #8 -32
