2 POSITION - ON/OFF
Panel-mounted switches are designed specifically for panel mount applications. This range gives a very compact, versatile solution.

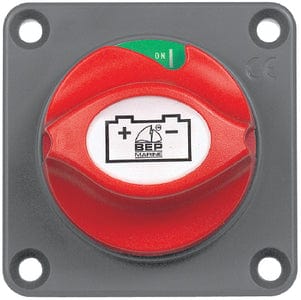

The 701 offers a contour lock system, allowing it to be a stand alone unit or locked together with other switches. It also features a control knob which cannot be removed while in the ON or OFF position, however can be removed by switching to an anti-clockwise 45? position. The control knob also features an interchangeable labeling system allowing a full range of applications. A rear cover insulates the terminals against any short circuits and ensures the switch meets ABYC requirements. Tin plated copper studs & nuts. Rated for 275 amps continuous, 455 intermittent, 1250 amps cranking. Mount Panel Mount Amps 275 (Continuous) Volts 6-48 Size 2-11/16"W x 2-11/16"H x 2-5/8"D

• Compact, lightweight


• Removable key


• Countersunk recesses for surface mount application


• Standard 2-1/16" (52 mm) hole cut out (same as standard gauge hole)


• Inside: captive inserts for 3/16" (4.8 mm) nuts providing full access for cables with no restrictions


• Standard interchange label system


• Molded in high temperature, fiber reinforced plastics
